D Office Tower

선릉역 D 오피스 타워

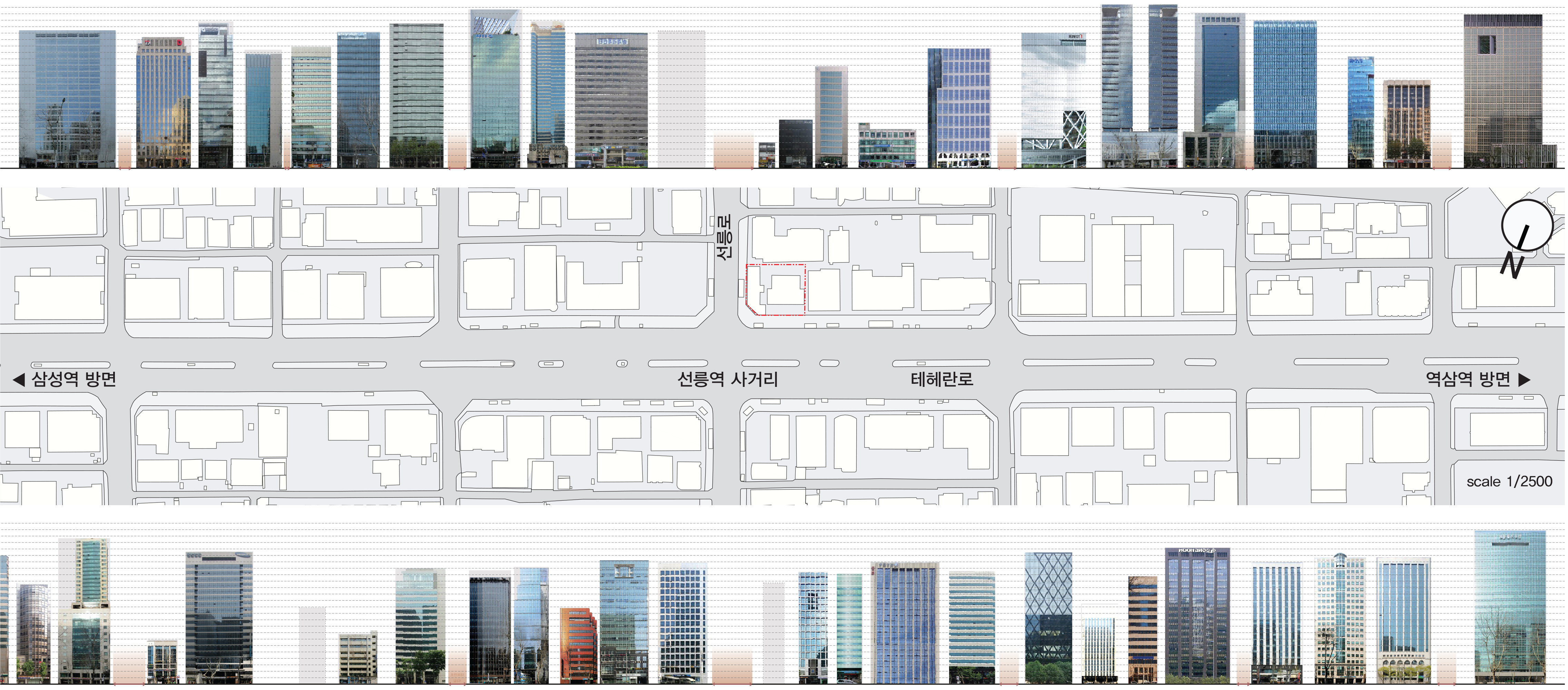

The proposed building site is located at the intersection of Seonreung-ro and Teheran-ro in a densely populated urban area. The location, which is also home to a subway station, serves as a central point in the Gangnam Business District. The surrounding area boasts a large residential neighborhood and a school district, and the site itself serves as a transportation hub for both residents and office workers. Given the vibrant and dynamic nature of the location, the building design should reflect this energy.

At the outset of the project, we conducted research on existing office buildings on Teheran-ro, examining factors such as rental rates, tenant types, and building layouts. The new building will have 21 total floors, including three underground levels. According to our economic feasibility study, the retail spaces will occupy the basement 1 to 4th floors, while the 5th to 15th floors will be available for rent as office space. The client’s headquarters will be located on the top three floors. The upper portion of the building features a rectangular design, while the ground level northeast corner is designed in a more organic shape to provide ample pedestrian space.

The building facade was designed with both aesthetics and functionality in mind. The upper portion is divided into five areas, each featuring white vertical louvers that are angled and positioned differently to create a three-dimensional effect that changes the building’s porosity depending on the observer’s perspective. The lower portion, which houses the retail spaces, features double-glazed windows without louvers to maintain transparency and allow for easy interaction between pedestrians and the retail programs. The overall design of the facade strikes a balance between visual appeal and design integrity.


Facade Studies

facade analysis

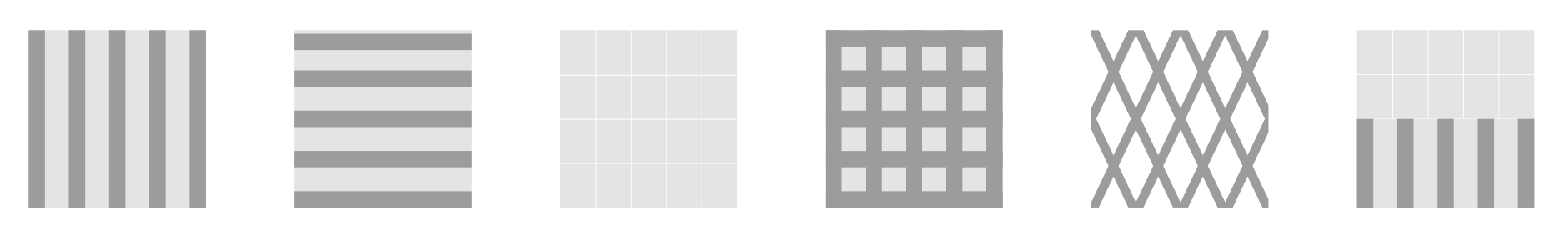

facade patterns

Volume / Access / Envelope

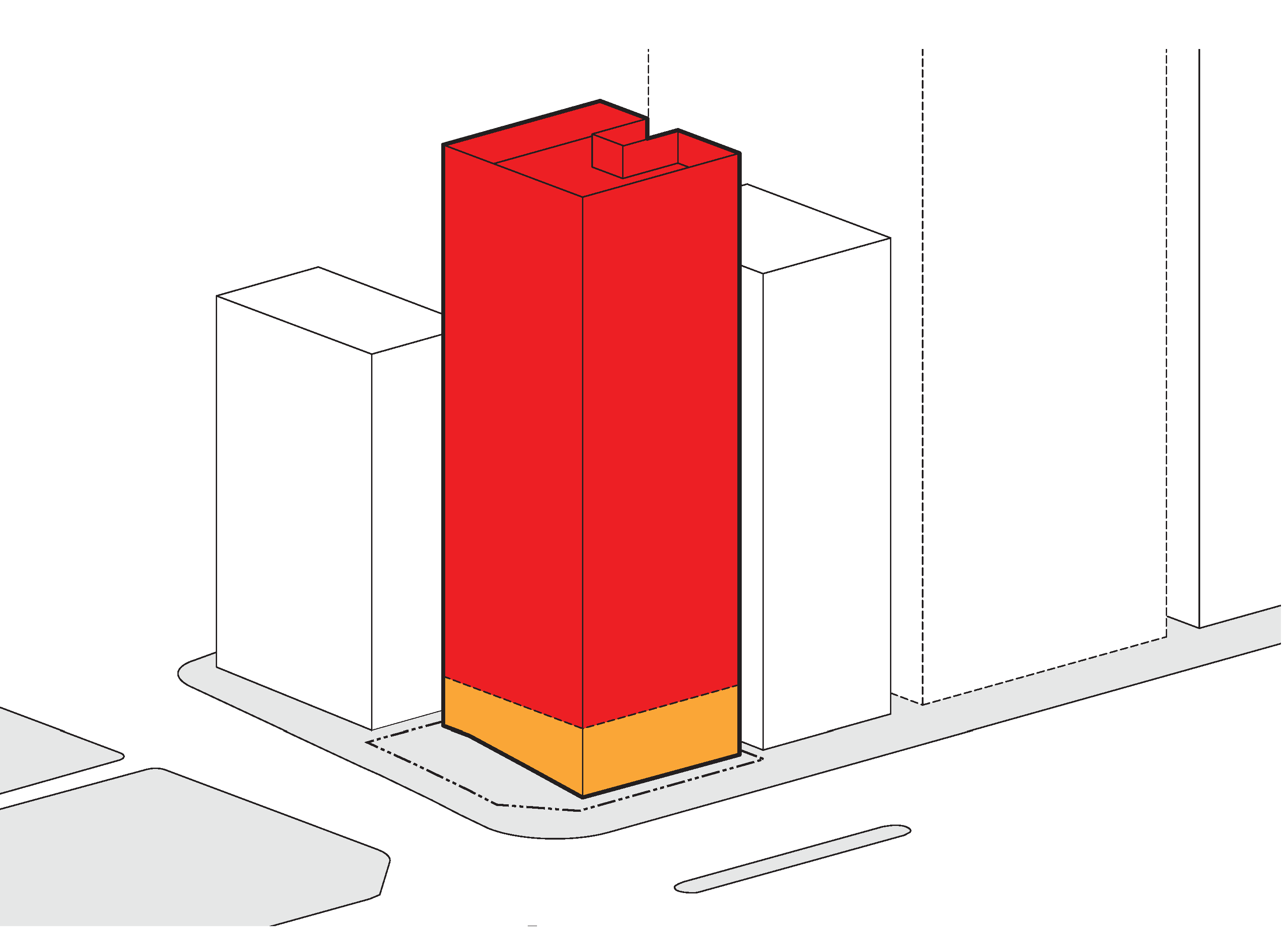

법적·물리적 환경에 따른 기본적 볼륨 및 프로그램

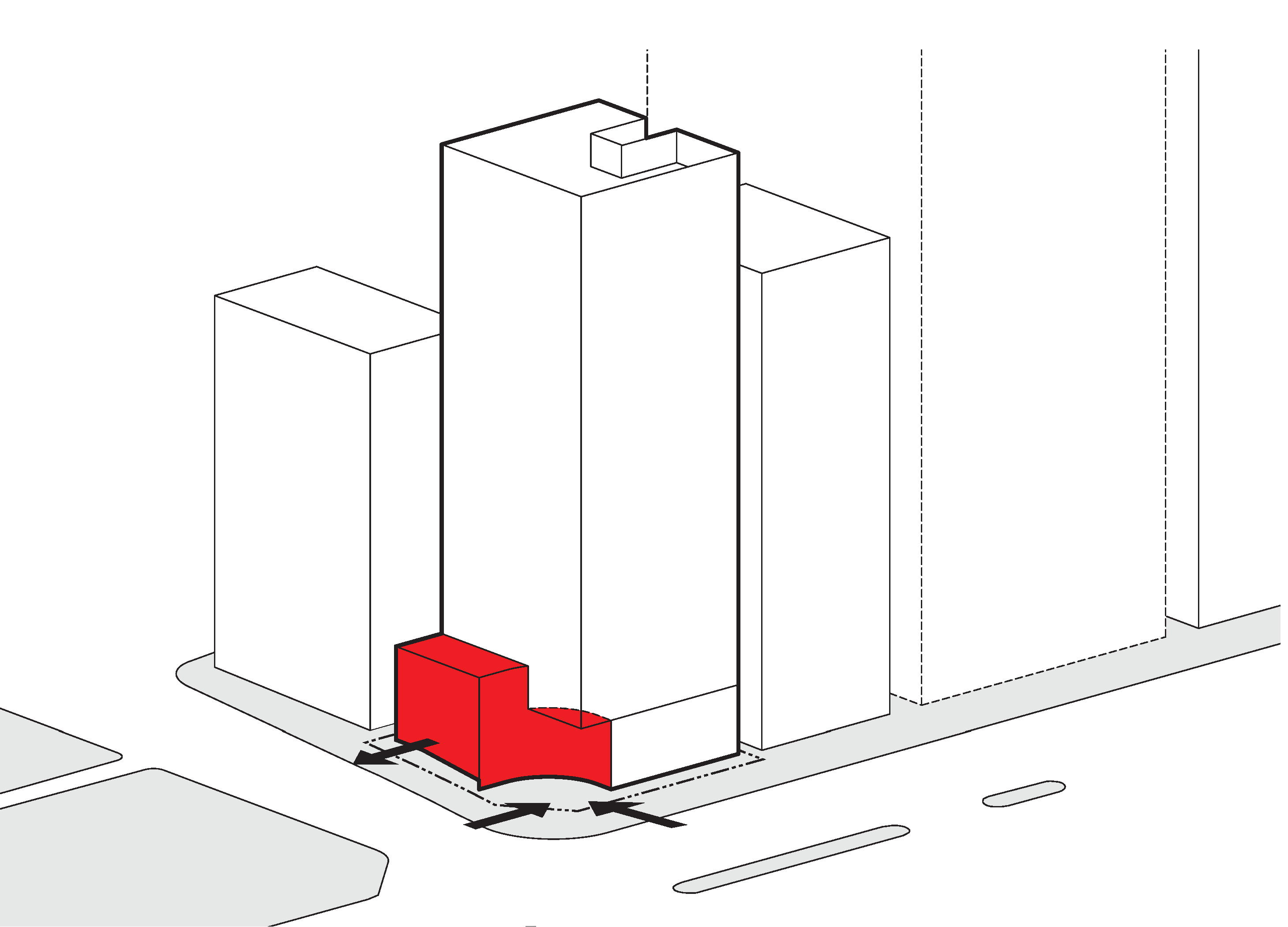

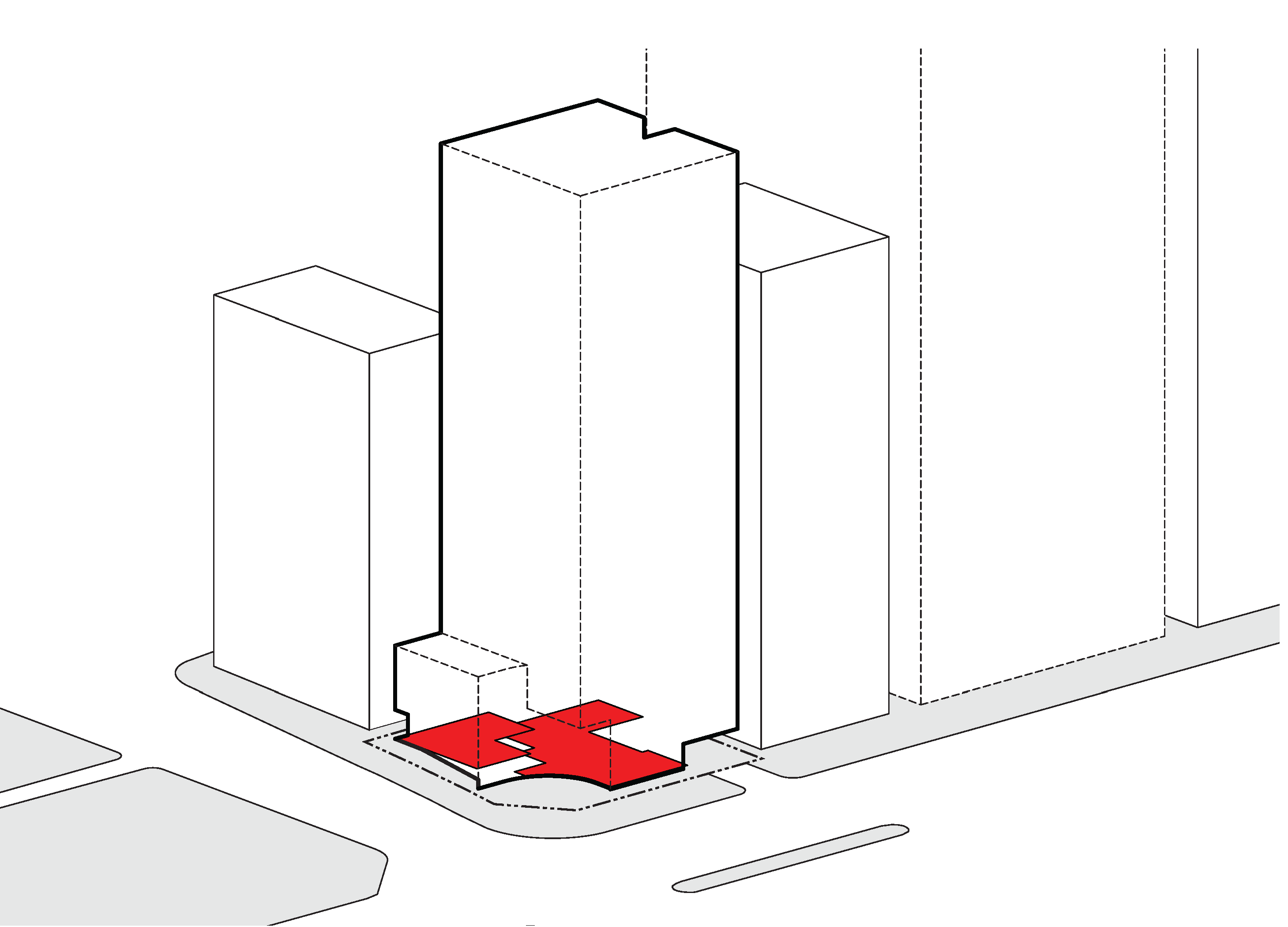

가로환경에 적극적으로 반응하는 저층부 볼륨

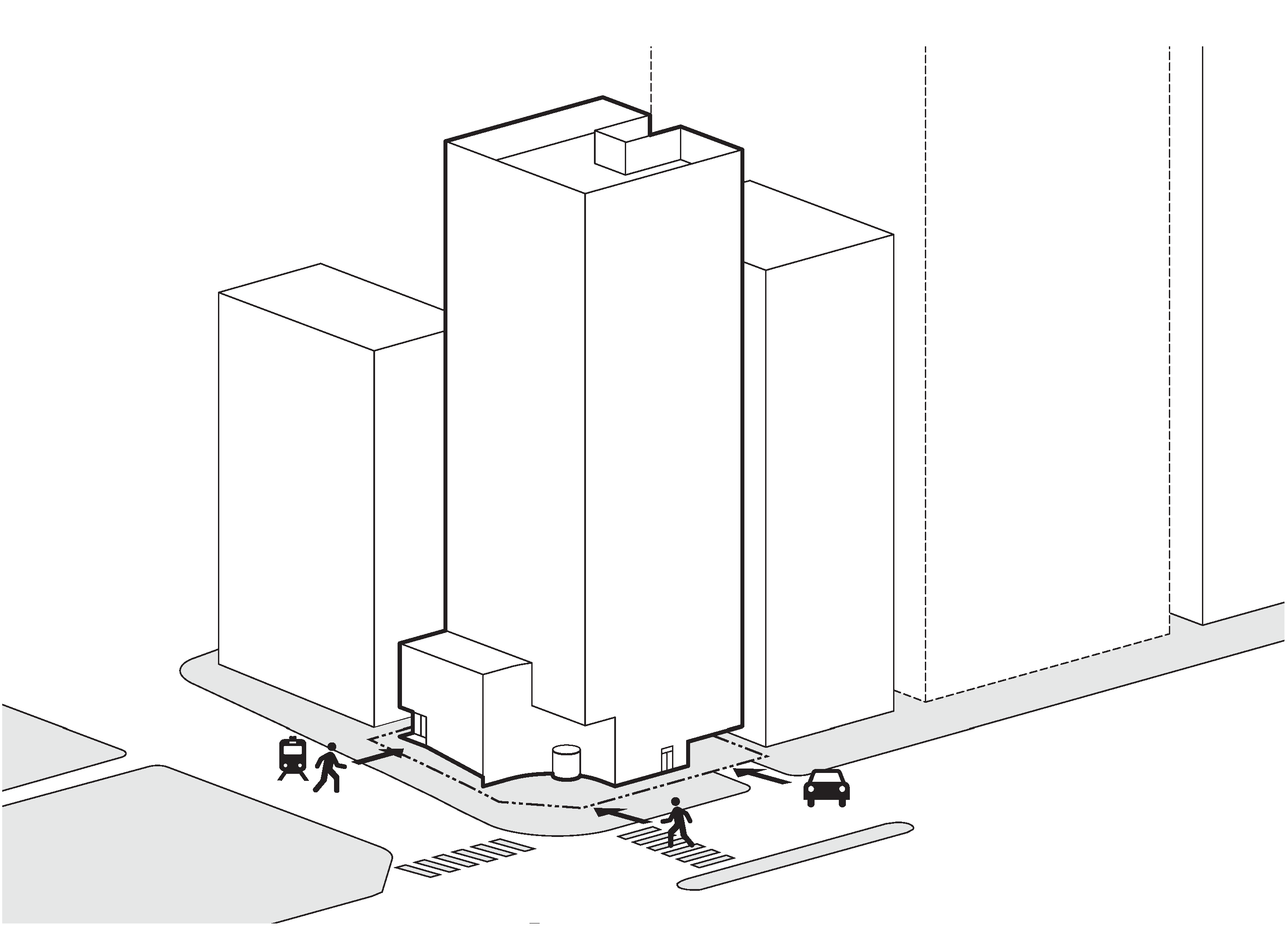

보행자 접근성을 감안한 출입동선
가로환경에 적극적으로 반응하는 저층부 레벨

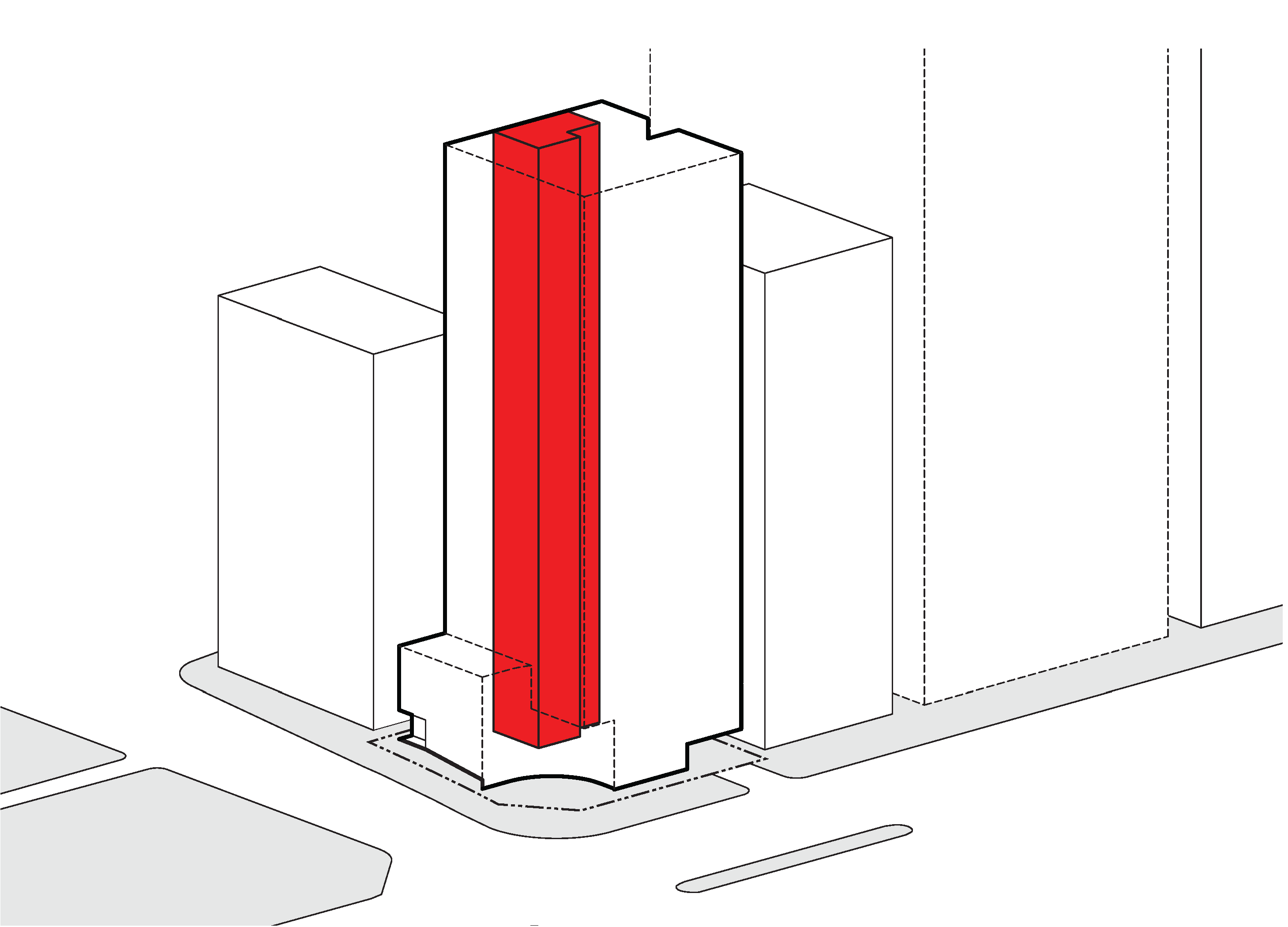

효율적인 수직동선

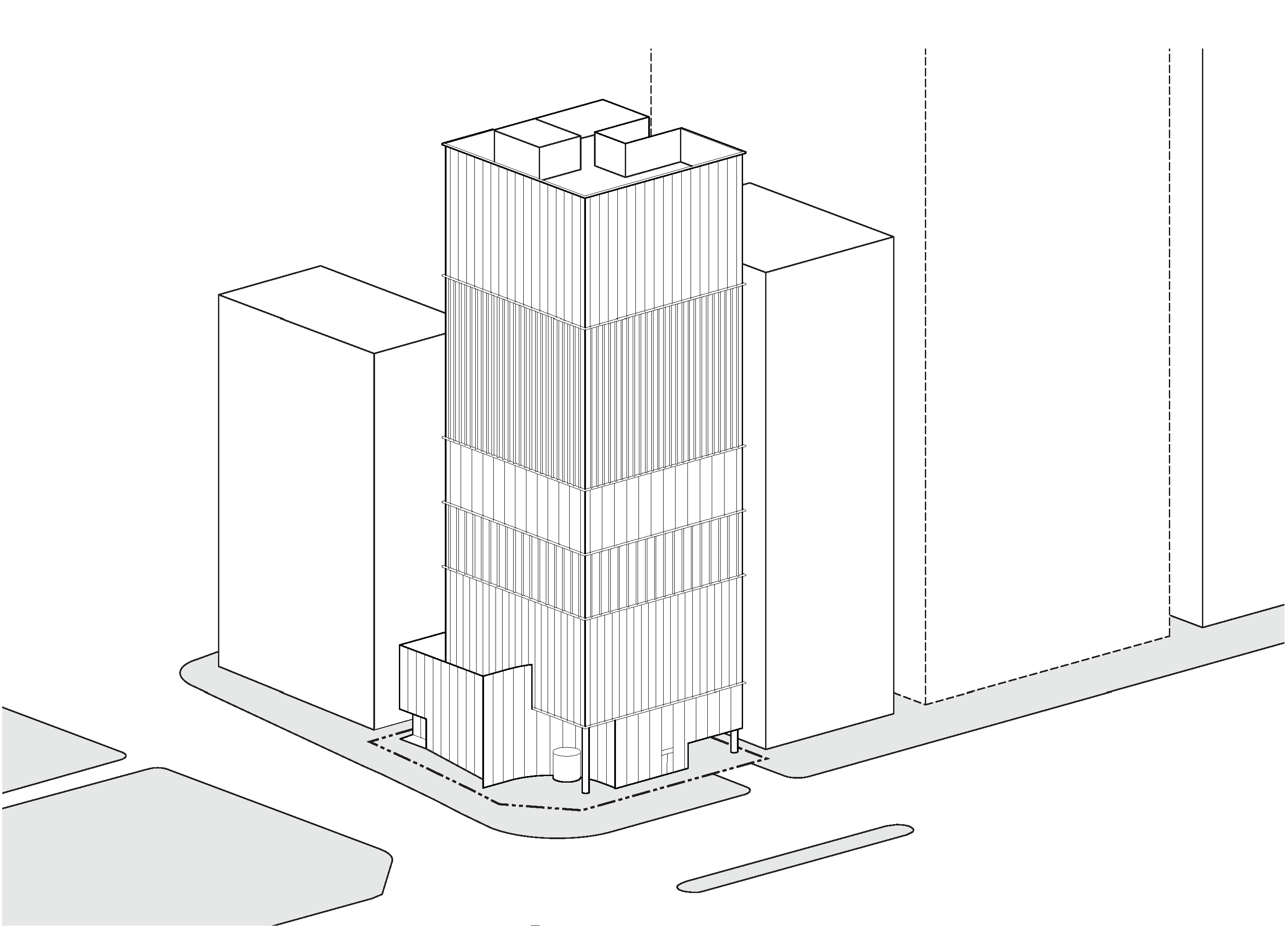

역동적인 주변환경에 대응하는 입면

Spatial Strategies

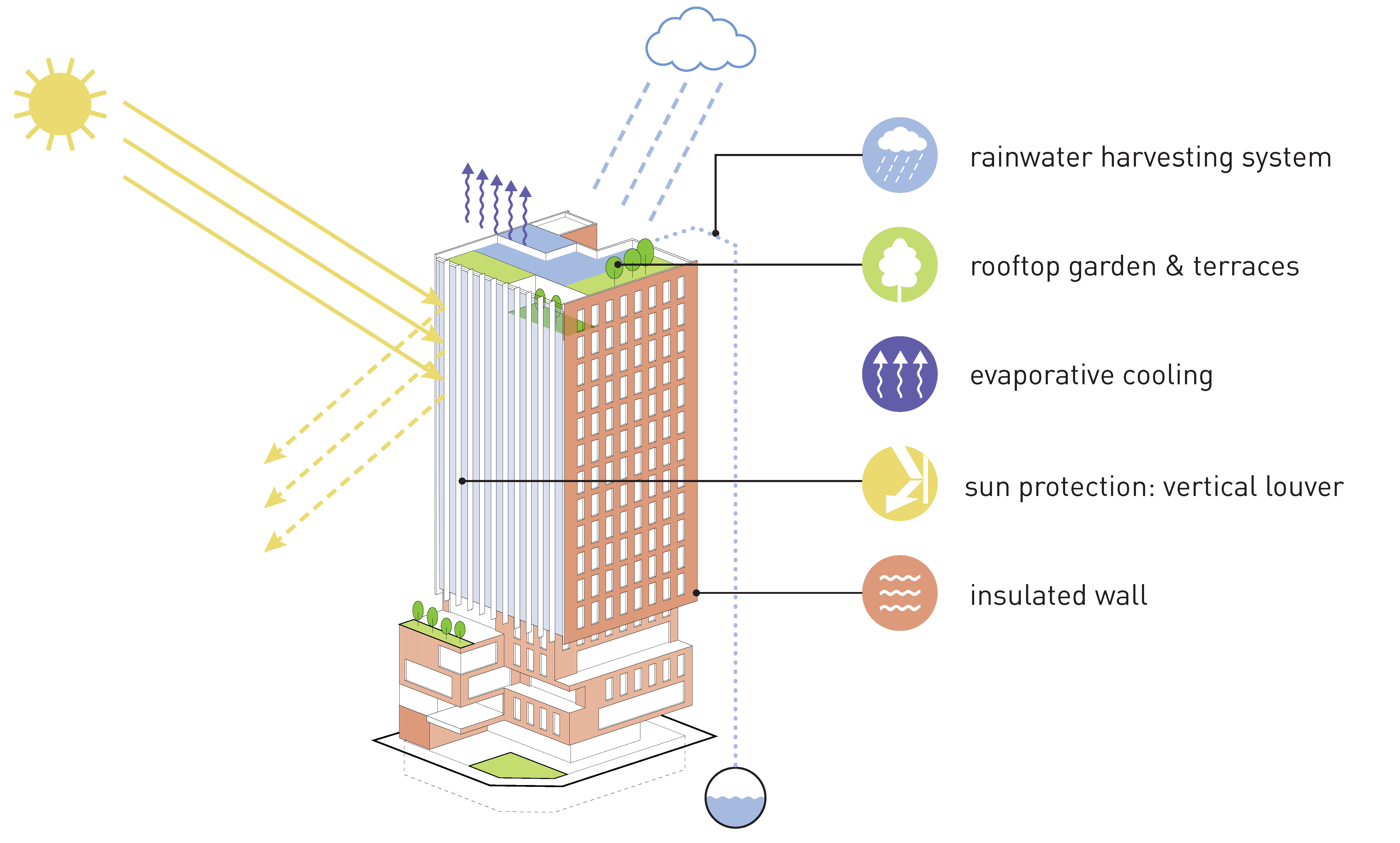

지속가능성을 고려한 환경친화적 디자인

  • 옥상에 빗물이용시설 설치하고 지하2층에 빗물저장고를 둠
  • 1층, 5층, 17층 테라스 및 옥상정원은 빗물관리 및 열섬화 방지
  • 동측입면의 커튼월에는 버티컬 루버를 설치하여 동쪽에서 들어오는 태양광을 선택적으로 통제
  • 북측입면에는 solid surface 조성하여 단열성능을 높이고 과도한 열손실 방지

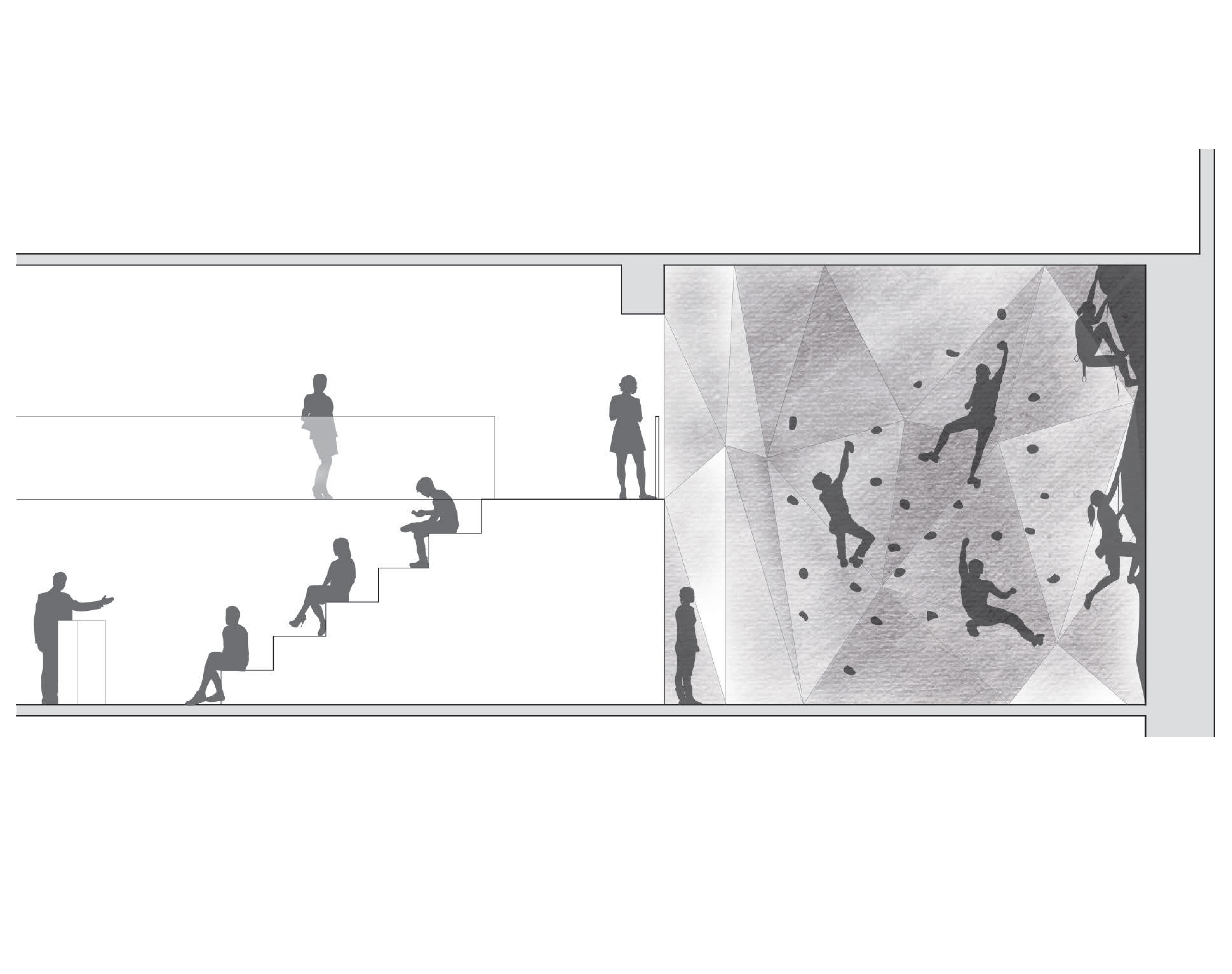

여유롭고 쾌적한 지하 상업공간

  • 지하층으로의 직접 진입 동선으로 접근성을 높여, 불리한 지하 임대환경 리스크 최소화.
  • 초역세권의 지리적 이점을 적극 이용하여 유입인구 증대 가능
  • 5M 층고 확보로 역동적이고 활동적 행위가 가능한 공간 제공
  • 메자닌, 포디움, 계단형 좌석(tiered seating) 등을 설치하여 다양한 공간창출가능
  • 동호회 스포츠, 레저활동 공간 / 레스토랑 / 판매공간 등으로 활용가능

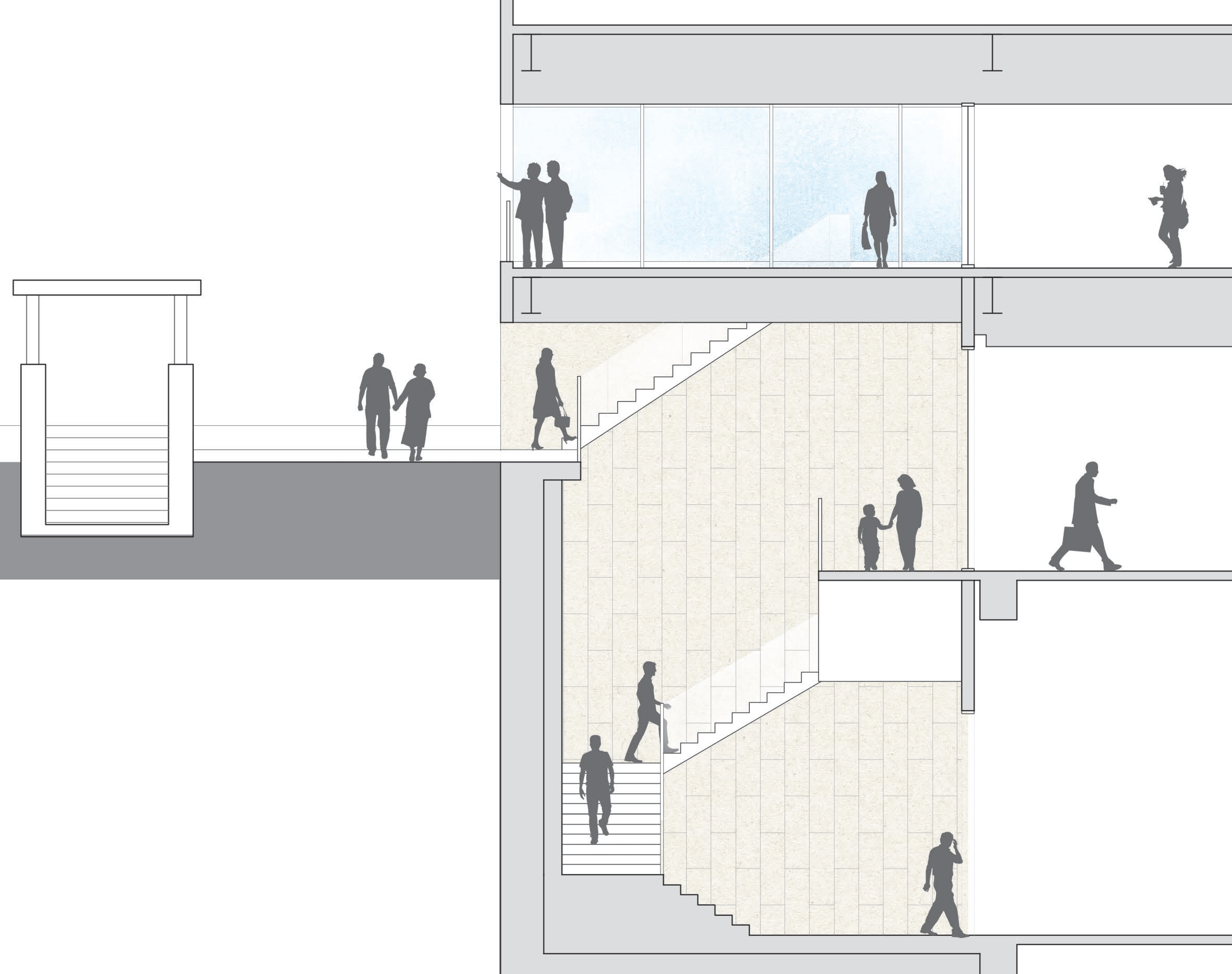

접근성이 더욱 향상된 상업공간

  • 근린생활시설 접근성 향상을 위해 지상 레벨에서의 다양한 진입동선을 설치하여통행자들과 건물의 접접을 최대화
  • 공개공지와 외부 수직동선 연계하여 자연스러운 진입의 경험 제공

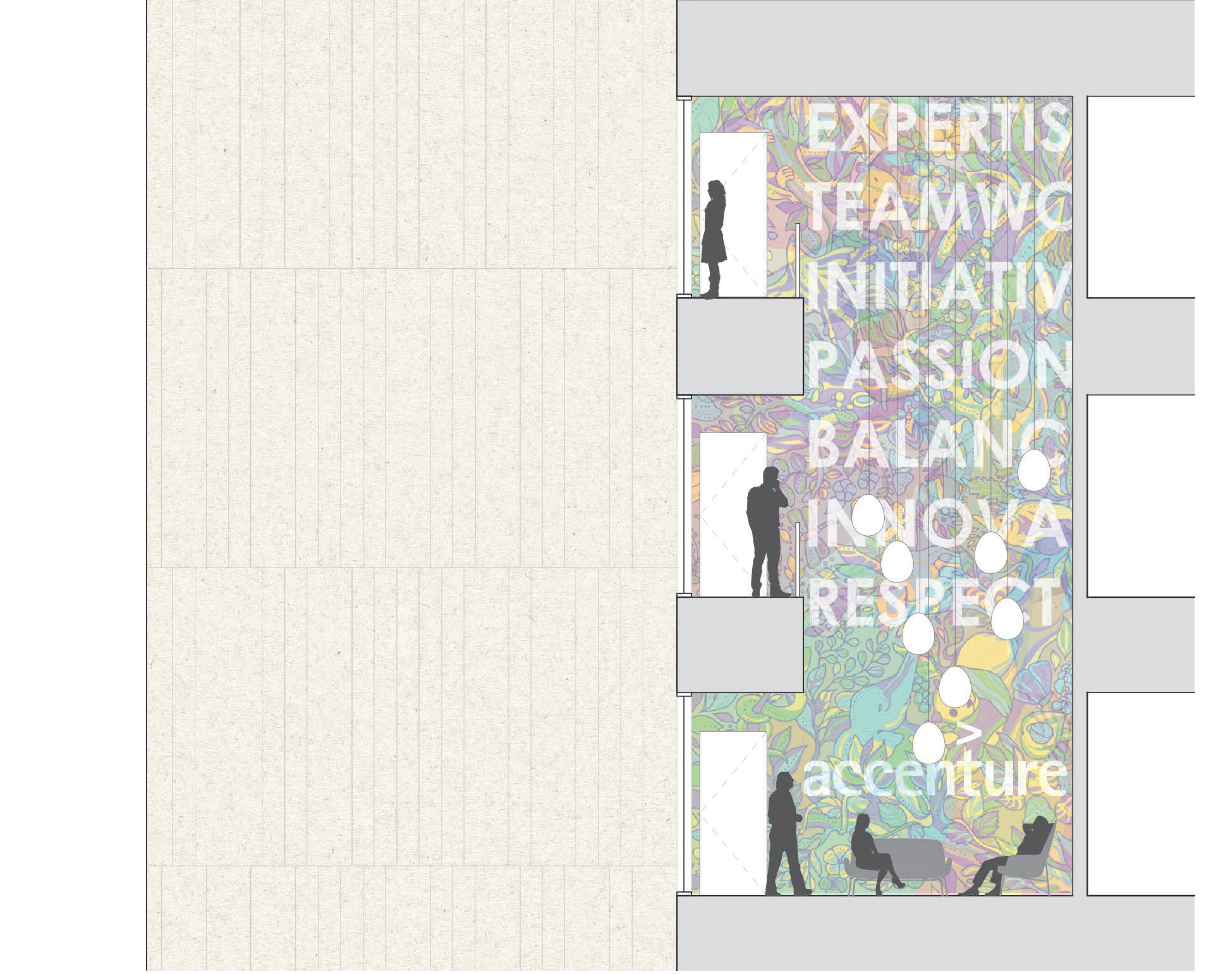

업무공간의 질적 향상을 위한 미니라운지

  • 공용부 역시 업무공간의 확장 개념으로 간주하여, 임차인의 업무환경의 질을 향상, 프리미엄 오피스 이미지 부여
  • 3개 층을 수직적으로 연결하는 보이드(void)는 사람들이 마주치며 소통하는 장소가 되기도 하며, 보이드의 최하층은 가구, 식물, 홍보월 등을 배치하여 해당 층의 소로비 또는 휴식장소로 활용가능
  • 3개층을 모두 사용하는 입주기업의 경우, 보이드의 벽체를 회사의 아이덴티티를 나타내는 공간으로 활용가능

Drawings

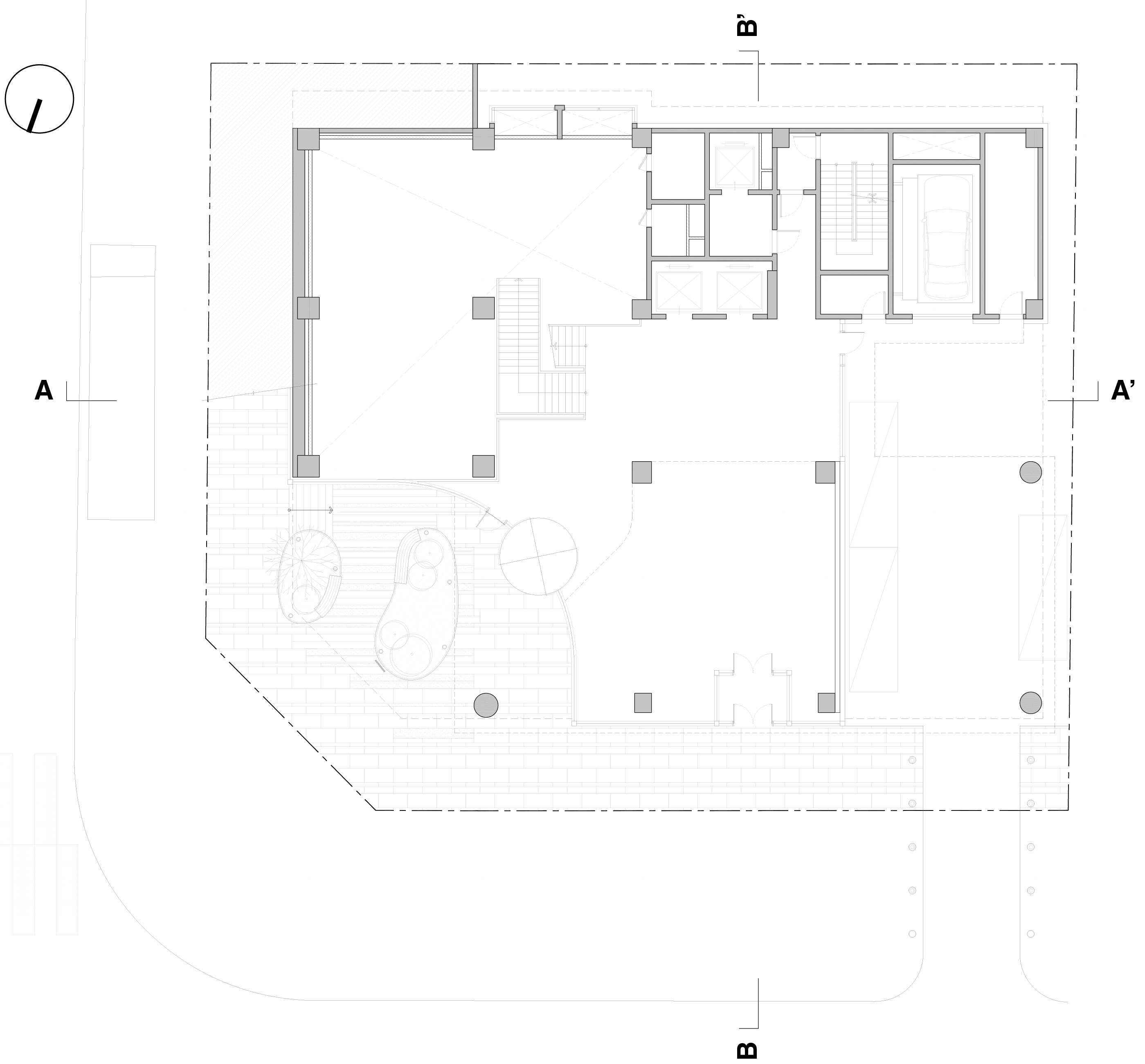

1st floor plan

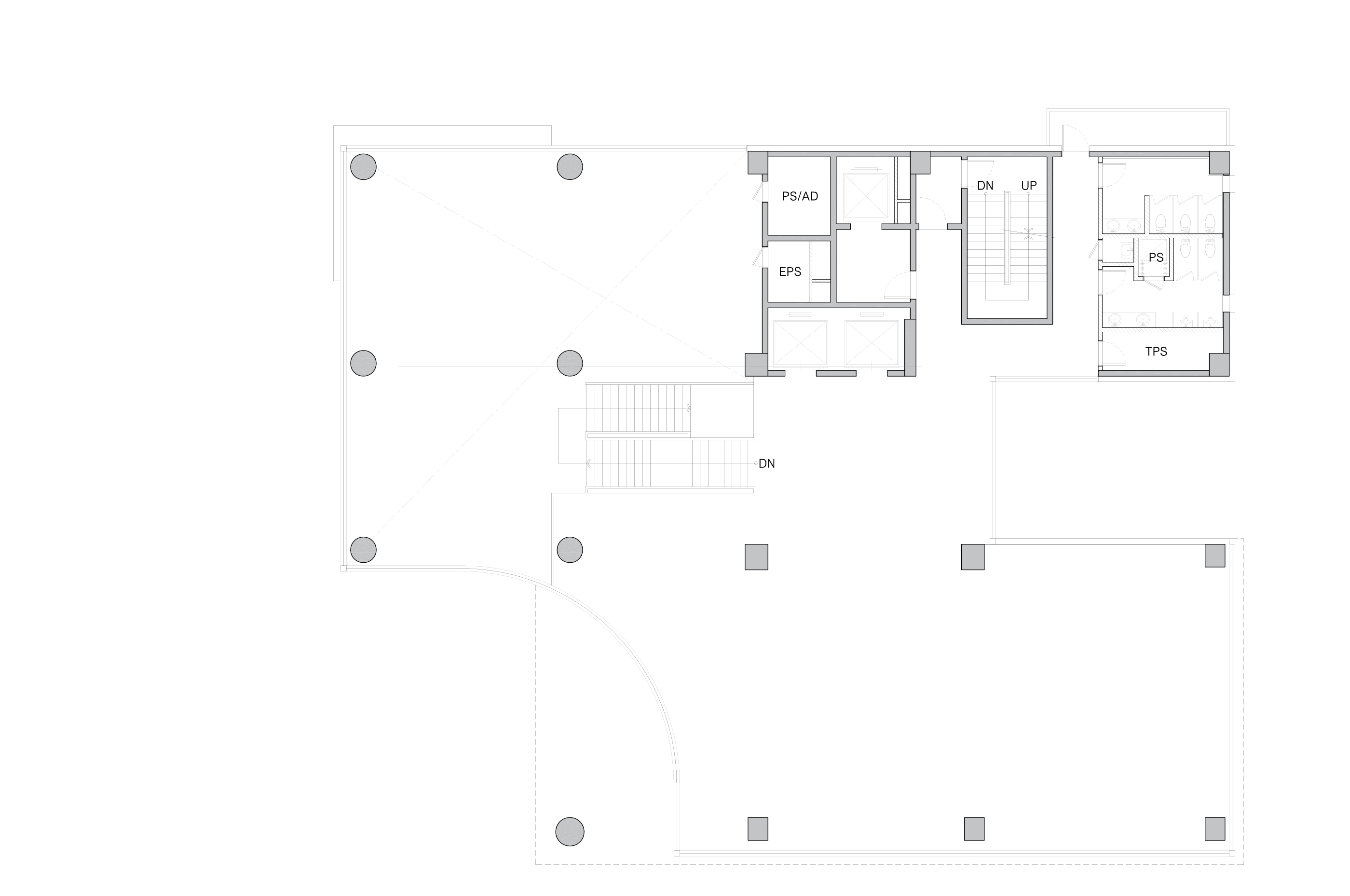

2nd floor plan

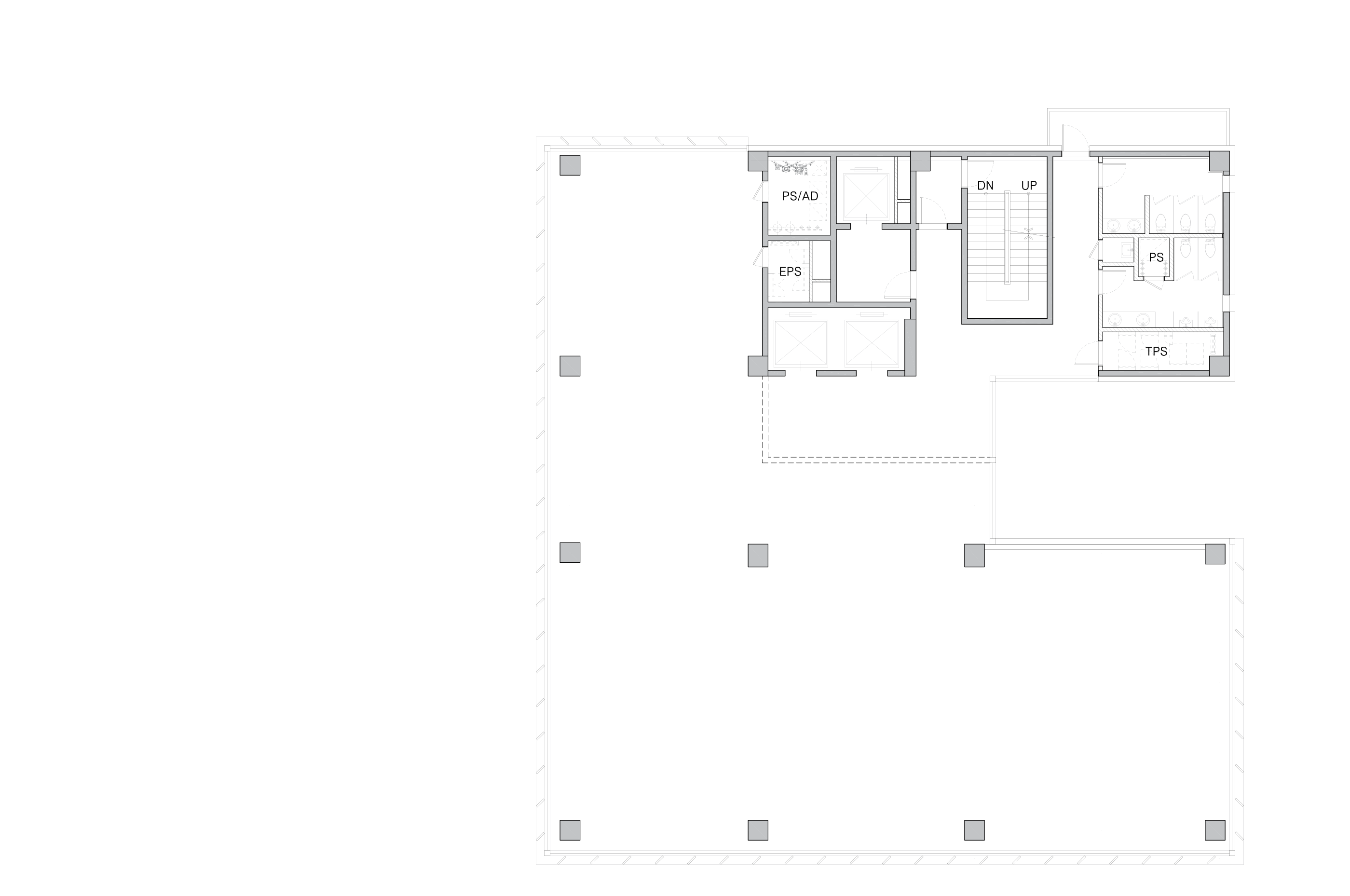

typical floor plan

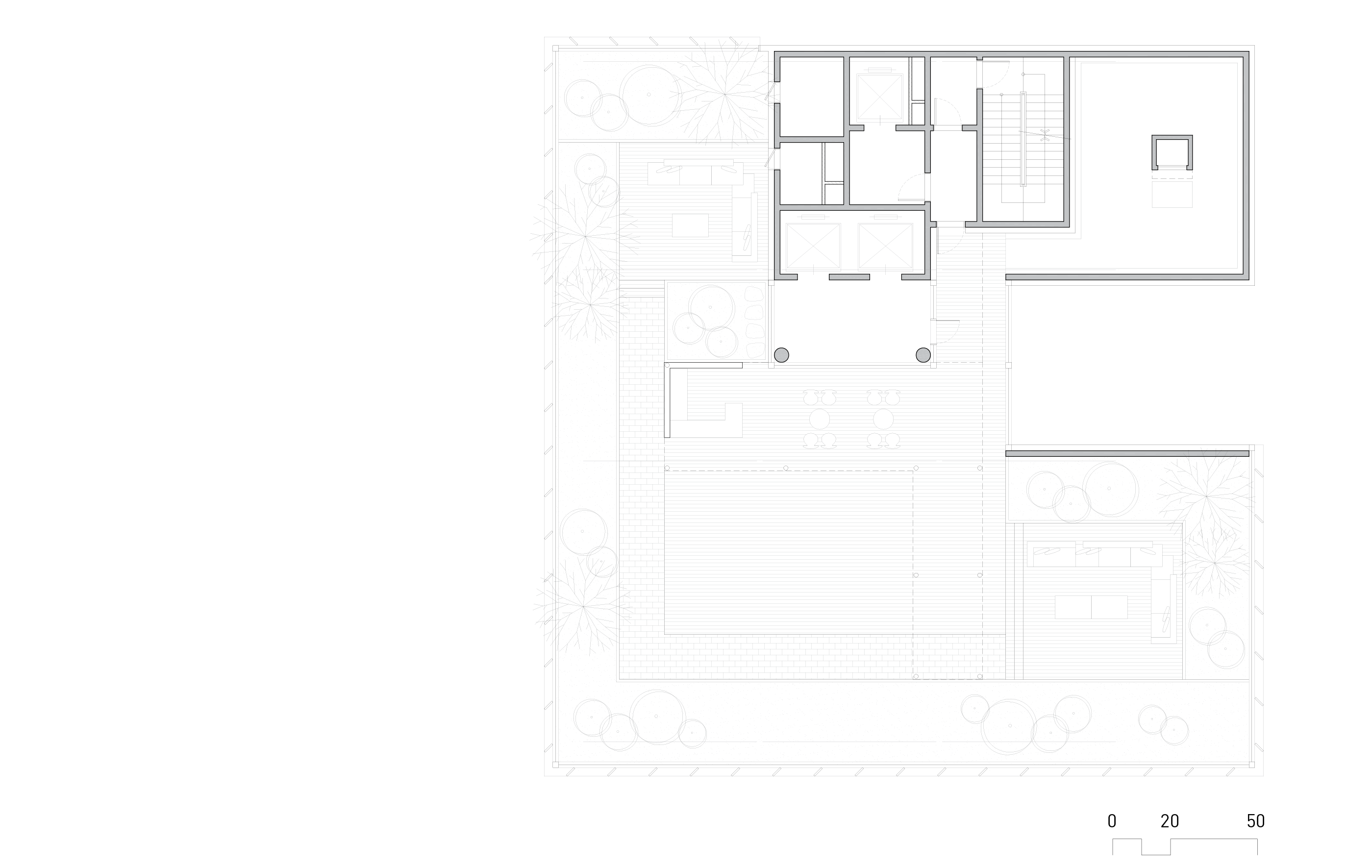

roof plan

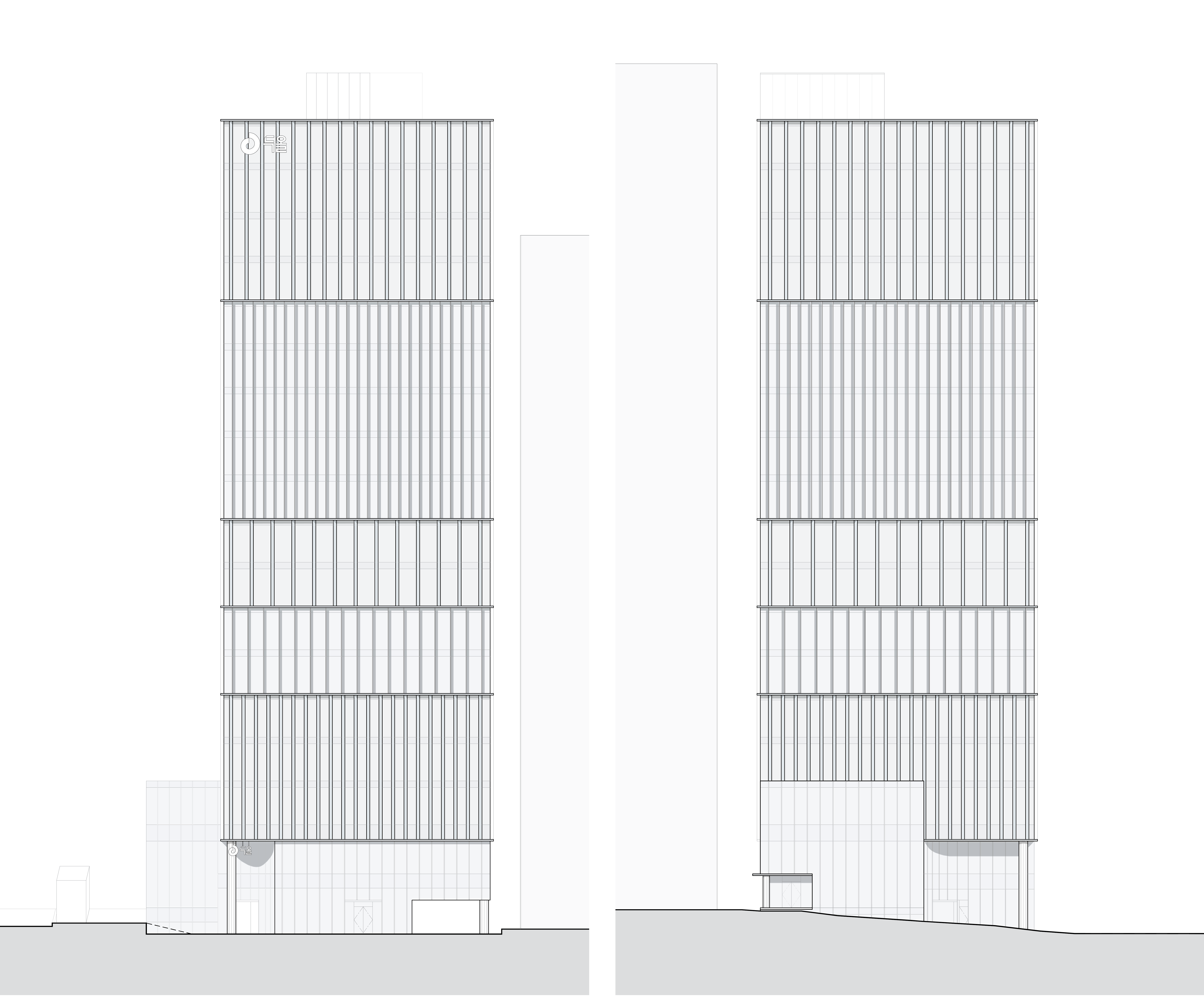

elevations

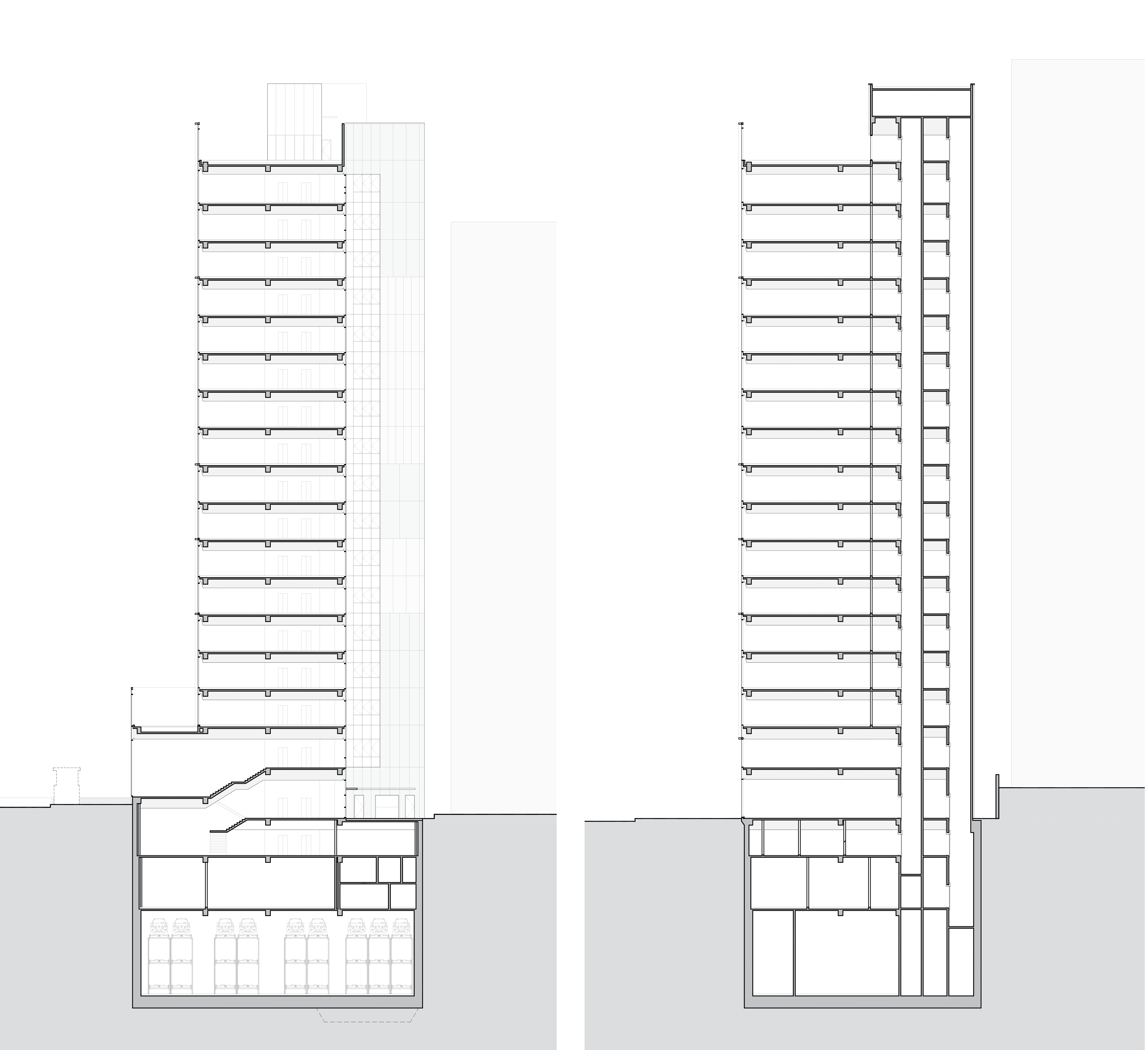

sections

Project  D Office Tower

Year  2017 – 2020

Type   Competition(1st Place)

Program  Office, Retail

Size  9,995 m²

Location  Gangnam-gu, Seoul, Korea

Design Team  Okhyun Kim with AbCT
